YFS-300智能型

产品详情

YFC型智能阀门测试机具体来说是集电、液压、试压、液体介质贮存循环使用于一体的,可以说是目前测试机中**新型的产品。该类机器一般都是选用质地优良的原材料,由专业技术人士结合专业的生产技术共同打造而成,整个加工生产过程堪称**。正是因为选材优良和生产工艺的精良,所以使得该类机器拥有多种独特优点,其中**典型的就是具有功能完善、性能稳定以及自动化程度高等特点。
智能阀门测试机是我公司在积累多年生产
阀门检测设备技术的基础上按照国家阀门生产技术的标准规范要求进行研发生产的,随后我们还自行设计改进新一代的液压阀门测试台。该机器在运行的过程中是由液压传动,通过电器控制的作用对被试阀门没有任何附加影响,而且测试结果十分的**,这一点极大地提高工作效率且减轻劳动强度,可以说是用于阀门制造、使用、维修等的一种**理想的阀门试验检测设备。

一、 系统概况This system summary

1、本智能压力数据管理系统主要完成对阀门测试机工作过程中有关数据的采集,试验过程动态**和数据记录,并打印工件测试结果的相关参数,便于使用单位的产品质量内部管理和售后服务,另外还可以对每次的测试结果记录于存储卡中,方便管理者对产品纵向质量的了解,为日后的生产和出厂产品质量备案提供重要的参考依据。

1、This intelligent pressure data management system mainly finishes about the data collection in the course of valve test machine working, test process dynastic monitoring and data record and print the related parameter of workpiece test result, convenient for the internal management and after-sales service of product quality of using unit, in addition, it can record the test result each time into the stocking card, facilitate the controller to understand the products longitudinally and provide the important reference basis for future production and ex-factory product quality records.

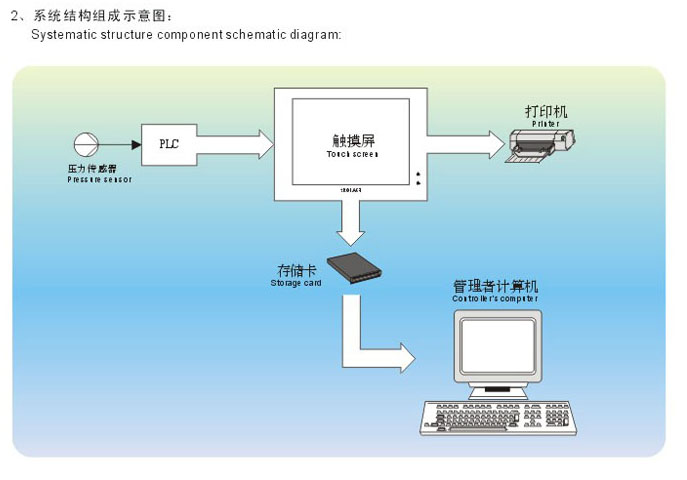

3、本系统采用了专门使用于工业现场工作的可编程控制器,为系统的正常工作提供稳定的硬件条件;选用触摸屏做人机界面,既方便又友好,便于工作人员对系统的操作。系统提供了在线帮助文档,使操作人员不离开机器就能方便的操作整个系统,使贵单位的产品检测手段和企业管理水平更上一个新台阶。

3、Thi which specis system adopts programmable controllerally uses to the industrial spot working and provides the steady hardware condition for the normal work of system; Choose the touch screen to be a machine interface, not only facilitate as well as friendly. It is easy for the operator to the systematic operation. System offers the online help document, makes the operator not leave the machine and operate the entire system easily, makes the product test measurement and business management level go up a more new step.

4、系统工作;被试阀门在装夹定位完毕后,检验员对阀门的类型,型号,公称通径,试验压力,保压时间,试验介质和试验性能及相关数据进行设定,然后对阀门进行压力试压,达到额定压力时自动停止供压,开始保压**,本计算机系统由传感器对被试阀门压力进行实时采集并自动绘制曲线,同时**观察工作动态过程,**后确定合格与不合格,并打印测试结果报告。

4、System work; After the tested valve is packed and located completely, the inspector carries out the enactment to the classification, model, nominal diameter, proof pressure, dwell time, test medium, test property and related data, then carries out the valve pressure test. When reaching specified pressure, it stops automatically and pressure supplying time begins to maintain pressure and monitor. This computer system gathers the sensor to carry out the real time to the valve pressure and automatically draws the curve, meanwhile, monitor and observe the work dynastic course, finally determine qualification or disqualification and print out the test result report.

5、本系统智能化的应用已彻底解决了低效率的人工记录方法和不便于企业历史实时的管理难题。而本系统能准确地监测到阀门的动态性能试验过程,具有强大的数据处理功能,保证测试精度的实时性,实现了整个试验过程的智能控制,开创优化企业产品质量管理的一个信息平台。

5、This system intellectualized application has thoroughly solved the inefficient artificial record method and management baffling problem inconvenient for enterprise historical real time. This system can accurately monitor the valve dynastic property test course, has powerful data handling function, guarantees the real time of test precision, realizes the intelligent control of entire test course and create an optimization information platform of enterprise product quality management.
